There are a few major options when generating avatars (people) in the simulation.


Firstly, when they are generated:


  • Static: Avatars will generate at the start of the simulation (t=0).
  • Dynamic: Avatars will also generate per second throughout the simulation. (It is always recommended to set a maximum Limit on the number of agents that can be generated from this distribution.)


Also, where they are generated:


  • Circle: Avatars will always start within the defined circle.
  • Room: Regardless of how big the circle is, avatars will start evenly across the whole room.
  • Rectangle: Avatars will always start within the defined rectangle.

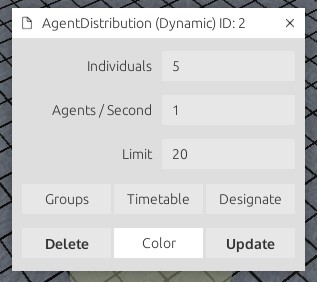

Clicking on a Distribution


After placing an agent distribution down in the environment, you can click on it to bring up more settings.


These include:

  • Group Settings
  • Timetable Settings
  • Designation Settings
  • Color

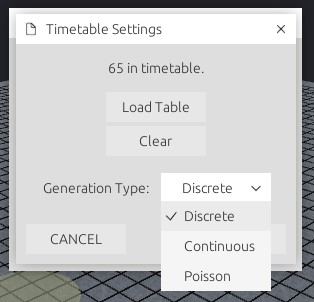

Timetable Settings


If you click on the Timetable button, the timetable settings will appear. Here you can load in a population timetable that will override the other settings.



The .csv file to load should be in this format:

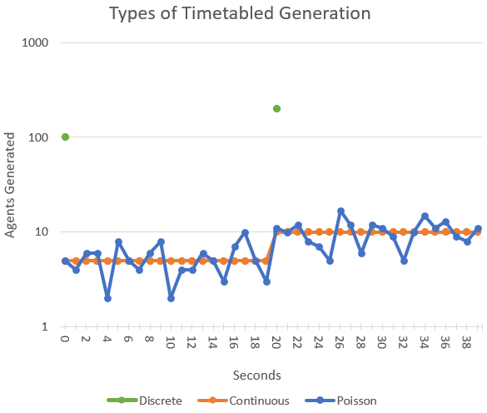

Depending on the generation type selected, avatars will be generated in a few different ways:



As a reminder, the poisson distribution has a probability curve as below:
